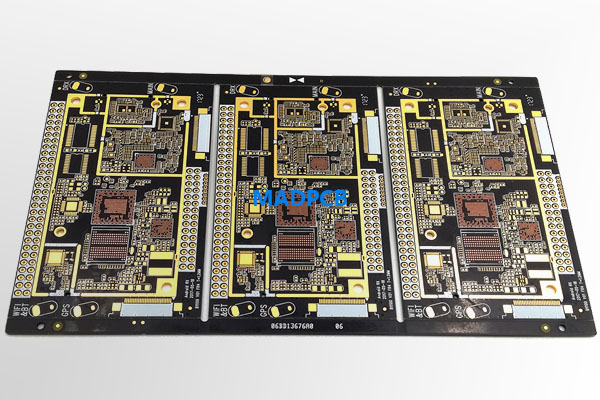

8 Layer 2+4+2 HDI PCB for Car Navigation System
8 Layer 2+4+2 HDI PCB for Car Navigation System
- Layer Count: 8 Layer
- HDI Level: 2+6+2
- Material: FR-4 Tg170, 94V-0, RoHS
- Finished Board Thickness: 1.2mm +/-10%
- Solder Mask: Matte Black x2
- Silkscreen: White x2
- Unit Size: 156.57 x 65.32mm
- Panel Size: 166.57 x 201.96mm/3up (1×3)
- Finished Inner Copper Weight: 18μm
- Finished Outer Copper Weight: 30μm
- Surface Finish: Immersion Gold + OSP (for fine pitch chips)
- Controlled Impedance: Yes
- Via-in-Pad: Resin Filled and Copper Capped
