What’s SBDIP Package?

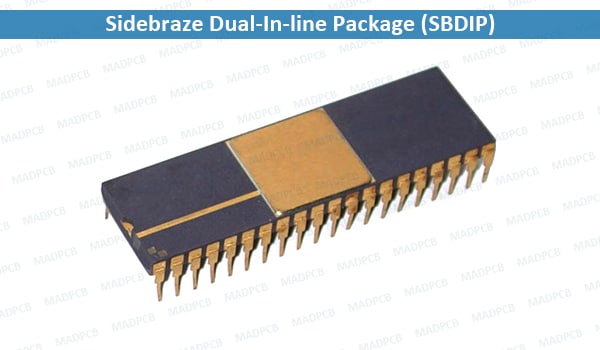

Sidebraze Dual-In-line Package (SBDIP) is one of the most mature IC packages still in use today. It is a rectangular ceramic package that has leads extending from both of its longer sides, thus forming two sets of in-line pins. It is therefore a type of dual-in-line package (DIP). Two others widely used DIPs are the PDIP and the CerDIP.



Like the cerDIP, the Sidebraze package is a hermetically sealed package that keeps out moisture and contaminants once it is sealed. Unlike the cerDIP which has separate upper and lower ceramic bodies, the sidebraze package has a single ceramic body. This single body has a cavity on top where the chip is placed and bonded. The sidebraze package is hermetically sealed with a metal cap.

SBDIP package’s lead counts range from 8 to 48. The packages usually have a body width of either 300 mils or 600 mils. However, 400- and 900-mil body widths do exist. The lead pitch of is typically 100 mils.

Properties of Some Examples
Lead Count	Width	Length	Thickness	Lead Pitch
14	290 mils	710 mils	140 mils	100 mils
20	290 mils	1015 mils	140 mils	100 mils
28	290 mils	1485 mils	160 mils	100 mils
32	380 mils	1600 mils	160 mils	100 mils
40	580 mils	1980 mils	160 mils	100 mils
