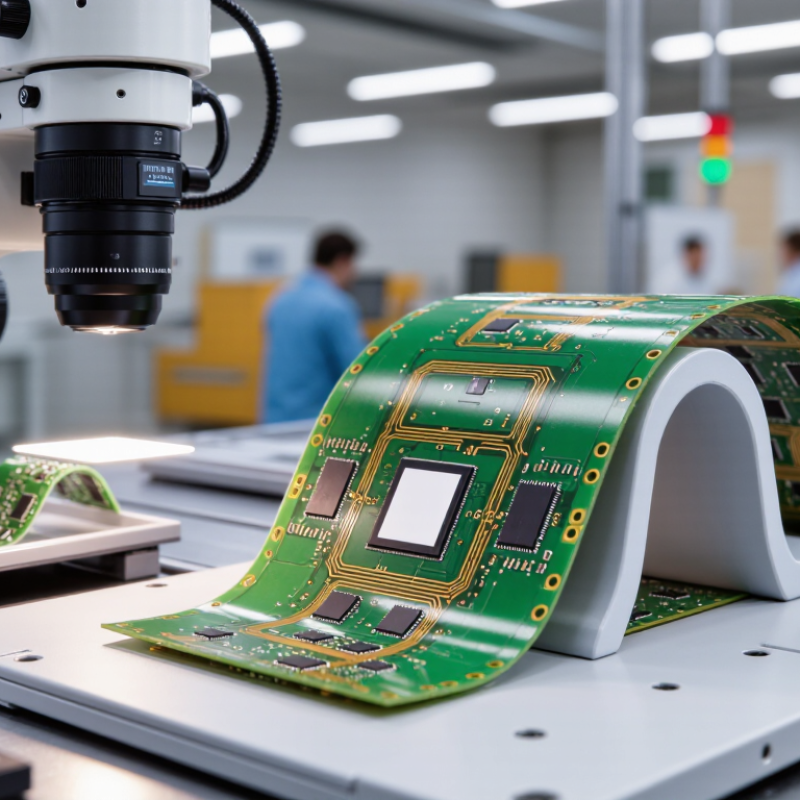

Who Makes the Best Flexible Printed Circuit in China?
Choosing the best flexible printed circuit manufacturer in China requires more than comparing catalog prices. The real test appears under a microscope.
A reliable supplier should control copper thickness, coverlay alignment, adhesive flow, and plated-through-hole quality. It should also explain its limits clearly. That matters when a circuit must bend thousands of times inside a camera module, medical sensor, or compact battery pack.
Joseph Fjelstad, a recognized flexible-electronics engineer and author of Flexible Circuit Technology, describes the discipline this way: “A flexible circuit is not simply a rigid circuit made bendable.” That principle remains highly practical. The strongest Chinese manufacturers design around bend radius, dynamic flexing, heat, impedance, and assembly stress from the beginning.
Evidence matters more than impressive factory photographs. Look for IPC-trained engineers, traceable material certificates, controlled lamination records, and cross-section analysis. Ask whether the supplier can provide first-article inspection reports, reliability data, and samples built with the same process as mass production. A clean showroom proves little.
Some factories excel at high-volume single-sided circuits. Others perform better with multilayer, rigid-flex, fine-pitch, or high-frequency designs. There is no universal winner. The best partner depends on your layer count, copper weight, tolerances, annual volume, and failure-risk tolerance.
I have found that communication often reveals more than equipment lists. Can the engineering team question an unrealistic bend radius? Can purchasing explain a sudden material substitution? Can quality managers show corrective-action records?
The answer may be imperfect. Supplier capabilities change, and public certifications can become outdated. This guide therefore compares practical evidence, not marketing language, to identify which Chinese manufacturer deserves serious technical trust.
China’s FPC Market: Growth, Applications, and Key Industry Metrics
Who Makes the Best Flexible Printed Circuit in China?
China’s FPC Market: Growth, Applications, and Key Industry Metrics
China’s flexible printed circuit market continues to expand through consumer electronics, electric vehicles, medical devices, cameras, and wearable equipment. Demand is moving toward thinner circuits, finer line spacing, lighter materials, and stronger bending performance. Small details decide reliability. A hinge cable may face thousands of bends, while an automotive circuit must tolerate heat, vibration, and chemical exposure.
In supplier evaluations, production capacity is only one metric. Buyers should review first-pass yield, defect parts per million, prototype turnaround, monthly output, and on-time delivery. Material traceability also matters. Qualified engineering teams normally verify copper thickness, insulation stability, impedance control, and bend-cycle results. Compliance with recognized IPC requirements can support consistent inspection, but it does not replace application-specific testing. Proof matters more.
Public market data remains uneven. Some reports show impressive growth, yet definitions of FPC revenue and shipment volume may differ. That limitation deserves attention. A factory can advertise large capacity while offering weak process control or slow corrective action. Practical audits should examine cleanroom conditions, laser drilling accuracy, etching uniformity, automated optical inspection, and failure analysis records. The best manufacturing partner depends on the circuit’s real environment, required tolerance, and expected service life. Fit matters more.
FPC Design Standards: 12–35 μm Copper and 6× Minimum Bend Radius
Who Makes the Best Flexible Printed Circuit in China?
The best FPC partner is not chosen by price alone. Its design discipline matters more. For many flexible circuits, copper thickness ranges from 12 to 35 μm. Thinner copper bends more easily, while thicker copper carries current and improves durability. The trade-off is real. A 6× minimum bend radius is a practical starting point, not a universal guarantee. For 18 μm copper, a 1 mm bend radius may appear acceptable only when the finished stack-up supports it. Dynamic bending, sharp corners, and repeated folding can quickly change the result.
Tips: Define the bend radius from the finished outer surface, not only from the copper layer. Specify static or dynamic flexing. Add bend-zone limits to the drawing. Keep vias, pads, and stiffener edges outside active bending areas. Request test data for repeated flex cycles, insulation resistance, and conductor cracking. Ask for cross-section records, too. Small details expose large process differences.
Reliable FPC production requires controlled etching, accurate coverlay placement, and stable lamination pressure. A capable engineering team should review impedance, tolerances, adhesive flow, and connector insertion forces before fabrication. These checks reduce surprises during assembly. They also reveal whether a quoted tolerance is realistic. In practice, the 6× rule can be too optimistic for multilayer circuits or circuits with plated features. That deserves a second review. The “best” supplier is the one that explains these limits clearly, documents inspection results, and adjusts the design before failure appears.
Manufacturer Comparison: IPC-6013, ISO 9001, and IATF 16949 Compliance
Choosing the best flexible printed circuit manufacturer in China requires more than comparing price and delivery time. IPC-6013 defines requirements for flexible and rigid-flex circuit performance, materials, testing, and workmanship. A capable factory should provide impedance records, bend-cycle results, microsection images, and controlled corrective-action reports. Traceability matters.
ISO’s 2022 Survey reported more than 1.2 million ISO 9001 certificates worldwide, showing how common quality certification has become. However, certification alone proves little about daily production discipline. Buyers should check calibration records, first-pass yield, process capability, and nonconformance trends. Small gaps hurt.
For automotive applications, IATF 16949 compliance adds stronger controls for risk analysis, supplier management, change approval, and defect prevention. The standard’s emphasis on APQP, PPAP, and layered process audits helps connect engineering decisions with factory output. A serious comparison should examine sample PPAP files, not just certificates. Industry reports from Mordor Intelligence and Grand View Research continue to show expanding demand for flexible electronics, especially in vehicles, medical devices, and compact consumer products. That growth increases pressure on reliability.
In practice, the strongest supplier is the one that links IPC-6013 testing with ISO 9001 systems and IATF 16949 methods. Yet no factory is flawless. Claims should be tested against recent audit findings, shipment data, and physical samples. An honest weakness is easier to manage than a hidden one.
Who Makes the Best Flexible Printed Circuit in China?
Manufacturer Comparison Framework: IPC-6013, ISO 9001, and IATF 16949 Compliance
This standards-based comparison shows the primary scope of each framework. IPC-6013 focuses on flexible and rigid-flex printed circuit board performance and qualification requirements. ISO 9001 establishes a general quality management system, while IATF 16949 adds automotive-specific quality, risk-management, traceability, and customer-specific requirements. Certification coverage alone does not identify the best manufacturer; buyers should also verify certificate validity, process capability, inspection records, and application-specific experience.
Production Capability: Layer Count, Line Width, and ±0.05 mm Tolerance
Who Makes the Best Flexible Printed Circuit in China?
A strong flexible printed circuit supplier should prove its production capability, not only display attractive samples. Layer count is an early indicator. Some factories handle single- and double-sided circuits well, while advanced projects may require six or more layers. Each added layer increases alignment risk, especially around fine vias and narrow bend areas.
Line width deserves close inspection. A supplier may quote 0.075 mm traces, yet actual production can vary after etching. Ask for cross-section reports, microscope images, and measured data from recent batches. A practical factory controls copper thickness, exposure energy, etching speed, and registration during fabrication. Small changes matter. A trace can look correct but fail after repeated flexing.
±0.05 mm tolerance is demanding for holes, outlines, and connector locations. Reliable production needs calibrated optical inspection, stable tooling, and documented first-article approval. I have found that process records often reveal more than a polished capability chart. Check whether measurements come from real production panels, not laboratory coupons. That distinction is easy to miss.
Quality teams should also review bend tests, impedance data, and lot-to-lot consistency. Flexible materials can shift during lamination. Humidity can complicate handling. Even experienced engineers occasionally underestimate these effects. A supplier that openly reports a failed trial, its cause, and the corrective action may deserve more trust than one promising perfect results.
Who Makes the Best Flexible Printed Circuit in China? – Production Capability: Layer Count, Line Width, and ±0.05 mm Tolerance
| Capability Category |
Typical Layer Count |
Minimum Line / Space |
Dimensional Tolerance |
Finished Board Thickness |
Maximum Typical Panel Size |
Recommended Applications |
| Standard Single-Sided FPC |
1 conductive layer |
0.15 / 0.15 mm |
±0.10 mm typical |
0.10–0.30 mm |
Up to approximately 250 × 500 mm |
Keyboards, LED lighting, simple sensors, and low-density interconnects |
| Standard Double-Sided FPC |
2 conductive layers |
0.12 / 0.12 mm |
±0.10 mm typical |
0.15–0.35 mm |
Up to approximately 250 × 500 mm |
Automotive controls, cameras, displays, and compact consumer electronics |
| Multilayer FPC |
3–6 conductive layers |
0.10 / 0.10 mm |
±0.075 mm typical |
0.25–0.60 mm |
Up to approximately 200 × 400 mm |
High-density modules, medical electronics, industrial controls, and camera assemblies |
| Fine-Line Multilayer FPC |
4–8 conductive layers |
0.075 / 0.075 mm |
±0.05 mm achievable |
0.30–0.80 mm |
Up to approximately 150 × 300 mm |
Wearable devices, smartphones, precision cameras, and compact medical equipment |
| High-Density Interconnect FPC |
6–12 conductive layers |
0.050 / 0.050 mm |
±0.05 mm controlled |
0.35–1.00 mm |
Up to approximately 100 × 250 mm |
Advanced mobile electronics, miniaturized modules, aerospace controls, and high-speed systems |
| Rigid-Flex Circuit |
2–12 conductive layers |
0.075 / 0.075 mm |
±0.05–0.10 mm |
0.50–2.00 mm |
Up to approximately 200 × 350 mm |
Automotive electronics, aerospace systems, robotics, and products requiring repeated bending and rigid mounting |
Technical note:
The values above represent commonly specified capability ranges for flexible printed circuits manufactured in China. Actual limits depend on copper thickness, substrate material, bend requirements, surface finish, board geometry, tooling, and inspection standards. A ±0.05 mm tolerance should be confirmed through the supplier's fabrication drawing and capability study before mass production.
